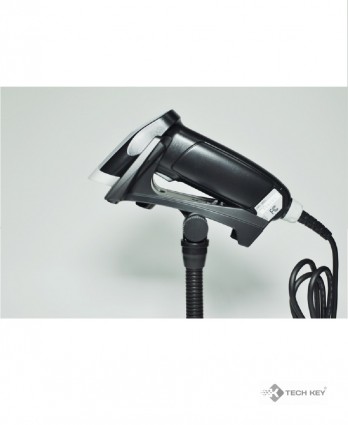

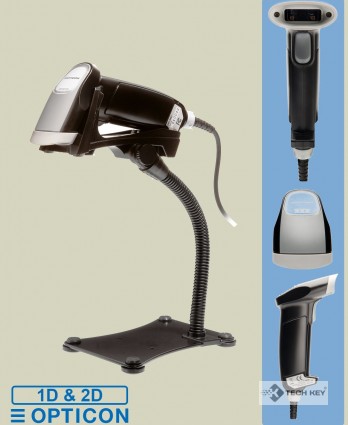

MÁY QUÉT MÃ VẠCH OPTICON HAI CHIỀU (2D) 3601

Operating indicators
Visual	1 LED (red/green/orange)
Non-visual	Buzzer
Operating keys
Entry options	1 scan key
Communication
RS232	DB9 PTF connector with external power supply
Keyboard Wedge	MiniDIN6 F/M connector
USB	Ver. 2.0, HID/VCP, USB-A connector
Power
Voltage requirement	6V ± 5% (Keyboard Wedge), 6V (min. 4.5, max. 6.5V) (RS232)
Current consumption	Max. 350mA (max typical use), 75mA (standby)
2D Imager Optics
2D Light source	Green aiming LED, illumination LEDs
2D Scan method	CMOS area sensor, 752 x 480 pixels, gray scale
2D Scan rate	60 fps
2D Trigger mode	Manual, multiple read, auto-trigger, stand detection
2D Image format	Windows Bitmap, JPEG, TIFF
2D Gradulation	1024, 256, 16, 2
2D Image output mode	4 resolutions (full, 1/2, 1/3, 1/4), 2 ranges (horizontal, vertical)
2D Reading pitch angle	-50 to 0°, 0 to +50°
2D Reading skew angle	-50 to 0°, 0 to +50°
2D Reading tilt angle	360°
2D Focal distance	104 mm
2D Curvature	R>16 mm (12-digit 0.15 mm Codabar), R>20 mm (13-digit UPC)
2D Min. Resolution at PCS 0.9	QR code: 0.127 mm / 5 mil, DataMatrix: 0.169 mm / 7 mil
2D Min. PCS value	0.3
2D Field of view	Horizontal 40.6º, Vertical 26.4º
2D Depth of field	at Code 39: 65 - 105 mm / 2.56 - 4.13 in (0.127 mm / 5 mil), 45 - 185 mm / 1.77 - 7.28 in (0.254 mm / 10 mil) 50 - 250 / ,1.97 - 9.87 in (0.508/20 mil) at QR Code: 70 - 95 mm / 2.76 - 3.74 in (0.212 mm / 8.4 mil), 35 - 165 / 1.38 - 6.50 in (0.381 / 15 mil)
Supported Symbologies
Barcode (1D)	JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code	Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET
2D code	Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code
Durability
Temperature in operation	-20 to 50 °C / -4 to 122 °F
Temperature in storage	-20 to 60 °C / -4 to 140 °F
Humidity in operation	5 - 90% (non-condensing)
Humidity in storage	5 - 90% (non-condensing)
Ambient light immunity	Fluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max
Drop test	1.5 m / 5 ft drop onto concrete surface
Vibration test	10 - 100 Hz with 2G for 1 hour
Protection rate	IP 42
Physical
Dimensions (w x h x d)	56 x 148.6 x 108.1 mm / 2.20 x 5.85 x 4.26 in
Weight body	Ca. 85 g / 3 oz (excl. cable)
Case	ABS, Black or White
Regulatory & Safety
Product compliance	CE, FCC, VCCI, RoHS, IEC 62471-1, IEC 60825-1 Class 1, IEC 60950-1
